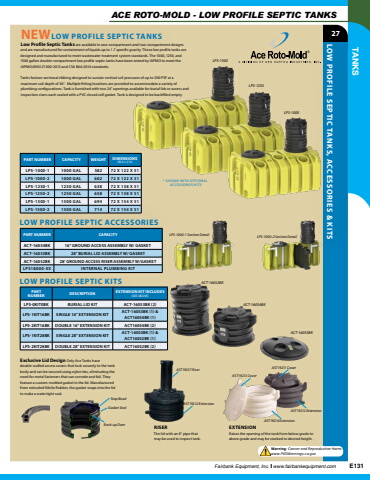

Fairbank Equipment, Inc. www.fairbankequipment.com E131 TANKS27Warning: Cancer and Reproductive Harm.www.P65Warnings.ca.govLOW PROFILE SEPTIC TANKS, ACCESSORIES & KITSEXTENSIONRaises the opening of the tank from below grade to above grade and may be stacked to desired height.RISERThe lid with an 8\may be used to inspect tank.AST19257 RiserAST19212 ExtensionAST19211 CoverAST19212 ExtensionAST19214 ExtensionAST19213 CoverExclusive Lid Design Only Ace Tanks have double-walled access covers that lock securely to the tank body and can be secured using nylon ties, eliminating the need for metal fasteners that can corrode and fail. They feature a custom-molded gasket in the lid. Manufactured from extruded Nitrile Rubber, the gasket snaps into the lid to make a watertight seal.Gasket SealBack-up DamStop BeadPART NUMBER DESCRIPTION EXTENSION KIT INCLUDES (SEE ABOVE)LPS-0KIT0BK BURIAL LID KIT ACT-16053BK (2)LPS-1KIT16BK SINGLE 16\ACT-16053BK (1) & ACT16054BK (1)LPS-2KIT16BK DOUBLE 16\ACT16054BK (2)LPS-1KIT28BK SINGLE 28\ACT-16053BK (1) & ACT16052BK (1)LPS-2KIT28BK DOUBLE 28\ACT16052BK (2)LOW PROFILE SEPTIC KITSLOW PROFILE SEPTIC TANKSPART NUMBER CAPACITY WEIGHT DIMENSIONS (W X L X H)LPS-1000-1 1000 GAL 582 72 X 122 X 51LPS-1000-2 1000 GAL 602 72 X 122 X 51LPS-1250-1 1250 GAL 638 72 X 138 X 51LPS-1250-2 1250 GAL 658 72 X 138 X 51LPS-1500-1 1500 GAL 694 72 X 154 X 51LPS-1500-2 1500 GAL 714 72 X 154 X 51LPS-1000-1 Section Detail LPS-1000-2 Section DetailLPS-1000LPS-1500LPS-1250* SHOWN WITH OPTIONAL ACCESSORIES/KITS LOW PROFILE SEPTIC ACCESSORIESPART NUMBER CAPACITYACT-16054BK 16\ACT-16053BK 28\ACT-16052BK 28' GROUND ACCESS RISER ASSEMBLY W/GASKETLPS18000-XX INTERNAL PLUMBING KITACT-16052BKACT-16054BKACT-16053BKLow Profile Septic Tanks are available in one-compartment and two-compartment designs and are manufactured for containment of liquids up to 1.7 specific gravity. These low profile tanks are designed and manufactured to meet wastewater treatment system standards. The 1000, 1250, and 1500 gallon double-compartment low profile septic tanks have been tested by IAPMO to meet the IAPMO/ANSI Z1000-2013 and CSA B66-2016 standards.Tanks feature sectional ribbing designed to sustain vertical soil pressures of up to 500 PSF at a maximum soil depth of 36%u201d. Multiple fitting locations are provided to accommodate a variety of plumbing configurations. Tank is furnished with two 24%u201d openings available for burial lids or access and inspection risers each sealed with a PVC closed cell gasket. Tank is designed to be backfilled empty.NEWACE ROTO-MOLD - LOW PROFILE SEPTIC TANKS
