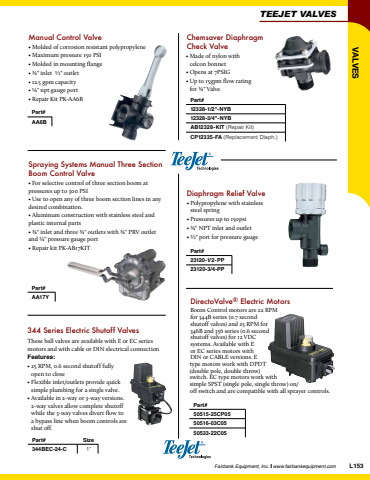

Fairbank Equipment, Inc. www.fairbankequipment.com L153 VALVESDirectoValve%u00ae Electric MotorsBoom Control motors are 22 RPM for 344B series (0.7 second shutoff valves) and 25 RPM for 346B and 356 series (0.6 second shutoff valves) for 12 VDC systems. Available with E or EC series motors with DIN or CABLE versions. E type motors work with DPDT (double pole, double throw) switch. EC type motors work with simple SPST (single pole, single throw) on/off switch and are compatible with all sprayer controls.344 Series Electric Shutoff ValvesThese ball valves are available with E or EC series motors and with cable or DIN electrical connectionFeatures:%u2022 25 RPM, 0.6 second shutoff fully open to close%u2022 Flexible inlet/outlets provide quick simple plumbing for a single valve.%u2022 Available in 2-way or 3-way versions. 2-way valves allow complete shutoff while the 3-way valves divert flow to a bypass line when boom controls are shut off.Manual Control Valve%u2022 Molded of corrosion resistant polypropylene%u2022 Maximum pressure 150 PSI%u2022 Molded in mounting flange%u2022 %u00be\%u2022 12.5 gpm capacity%u2022 %u00bc\%u2022 Repair Kit PK-AA6BSpraying Systems Manual Three Section Boom Control Valve%u2022 For selective control of three section boom at pressures up to 300 PSI%u2022 Use to open any of three boom section lines in any desired combination.%u2022 Aluminum construction with stainless steel and plastic internal parts%u2022 %u00be\and %u00bc\%u2022 Repair kit PK-AB17KITTEEJET VALVESDiaphragm Relief Valve%u2022 Polypropylene with stainlesssteel spring%u2022 Pressures up to 150psi%u2022 %u00be\%u2022 %u00bd\Chemsaver Diaphragm Check Valve%u2022 Made of nylon with celcon bonnet%u2022 Opens at 7PSIG%u2022 Up to 15gpm flow rating for %u00be\Part#12328-1/2\12328-3/4\AB12328-KIT (Repair Kit)CP12335-FA (Replacement Diaph.)Part#23120-1/2-PP23120-3/4-PPPart# Size344BEC-24-C 1\Part#AA6BPart#AA17YPart#50515-25CP0550516-03C0550533-22C05
