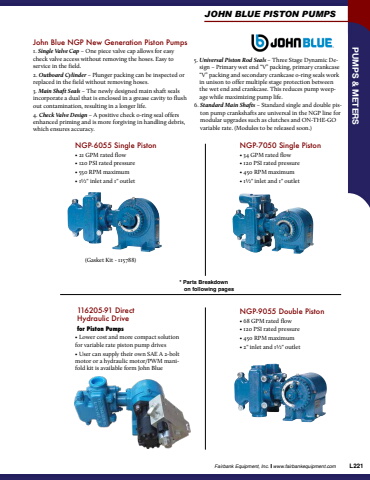

Fairbank Equipment, Inc. www.fairbankequipment.com L221 PUMPS & METERSNGP-6055 Single Piston%u2022 21 GPM rated flow%u2022 120 PSI rated pressure%u2022 550 RPM maximum%u2022 1%u00bd\(Gasket Kit - 115788)John Blue NGP New Generation Piston Pumps1. Single Valve Cap %u2013 One piece valve cap allows for easy check valve access without removing the hoses. Easy to service in the field.2. Outboard Cylinder %u2013 Plunger packing can be inspected or replaced in the field without removing hoses.3. Main Shaft Seals %u2013 The newly designed main shaft seals incorporate a dual that is enclosed in a grease cavity to flush out contamination, resulting in a longer life.4. Check Valve Design %u2013 A positive check o-ring seal offers enhanced priming and is more forgiving in handling debris, which ensures accuracy.NGP-7050 Single Piston%u2022 34 GPM rated flow%u2022 120 PSI rated pressure%u2022 450 RPM maximum%u2022 1%u00bd\116205-91 Direct Hydraulic Drive for Piston Pumps%u2022 Lower cost and more compact solution for variable rate piston pump drives%u2022 User can supply their own SAE A 2-bolt motor or a hydraulic motor/PWM manifold kit is available form John BlueNGP-9055 Double Piston%u2022 68 GPM rated flow%u2022 120 PSI rated pressure%u2022 450 RPM maximum%u2022 2\JOHN BLUE PISTON PUMPS5. Universal Piston Rod Seals %u2013 Three Stage Dynamic Design %u2013 Primary wet end %u201cV%u201d packing, primary crankcase %u201cV%u201d packing and secondary crankcase o-ring seals work in unison to offer multiple stage protection between the wet end and crankcase. This reduces pump weepage while maximizing pump life.6. Standard Main Shafts %u2013 Standard single and double piston pump crankshafts are universal in the NGP line for modular upgrades such as clutches and ON-THE-GO variable rate. (Modules to be released soon.) * Parts Breakdown on following pages
