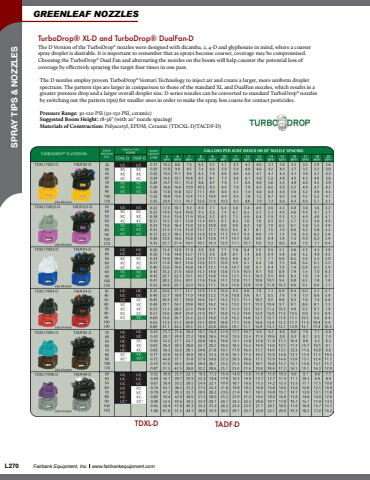

L270 Fairbank Equipment, Inc. www.fairbankequipment.com SPRAY TIPS & NOZZLESGREENLEAF NOZZLESTurboDrop%u00ae XL-D and TurboDrop%u00ae DualFan-DThe D Version of the TurboDrop%u00ae nozzles were designed with dicamba, 2, 4-D and glyphosate in mind, where a coarser spray droplet is desirable. It is important to remember that as sprays become coarser, coverage may be compromised. Choosing the TurboDrop%u00ae Dual Fan and alternating the nozzles on the boom will help counter the potential loss of coverage by effectively spraying the target four times in one pass. The D nozzles employ proven TurboDrop%u00ae Venturi Technology to inject air and create a larger, more uniform droplet spectrum. The pattern tips are larger in comparison to those of the standard XL and DualFan nozzles, which results in a greater pressure drop and a larger overall droplet size. D series nozzles can be converted to standard TurboDrop%u00ae nozzles by switching out the pattern tip(s) for smaller ones in order to make the spray less coarse for contact pesticides. Pressure Range: 30-120 PSI (30-150 PSI, ceramic)Suggested Boom Height: 18-36\Materials of Construction: Polyacetyl, EPDM, Ceramic (TDCXL-D/TACDF-D)TDXL-D TADF-D
