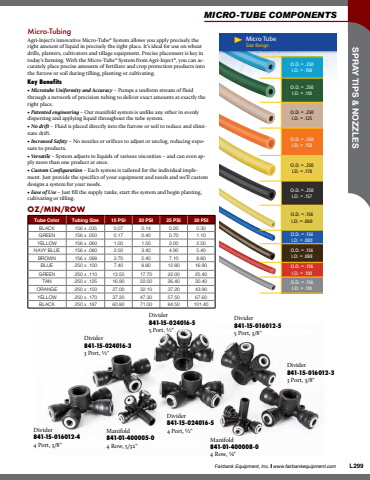

Fairbank Equipment, Inc. www.fairbankequipment.com L299 SPRAY TIPS & NOZZLESMicro-TubingAgri-Inject%u2019s innovative Micro-Tube%u00ae System allows you apply precisely the right amount of liquid in precisely the right place. It%u2019s ideal for use on wheat drills, planters, cultivators and tillage equipment. Precise placement is key in today%u2019s farming. With the Micro-Tube%u00ae System from Agri-Inject%u00ae, you can accurately place precise amounts of fertilizer and crop protection products into the furrow or soil during tilling, planting or cultivating.Key Benefits%u2022 Microtube Uniformity and Accuracy %u2013 Pumps a uniform stream of fluid through a network of precision tubing to deliver exact amounts at exactly the right place.%u2022 Patented engineering %u2013 Our manifold system is unlike any other in evenly dispersing and applying liquid throughout the tube system.%u2022 No drift %u2013 Fluid is placed directly into the furrow or soil to reduce and eliminate drift.%u2022 Increased Safety %u2013 No nozzles or orifices to adjust or unclog, reducing exposure to products.%u2022 Versatile %u2013 System adjusts to liquids of various viscosities %u2013 and can even apply more than one product at once.%u2022 Custom Configuration %u2013 Each system is tailored for the individual implement. Just provide the specifics of your equipment and needs and we%u2019ll custom designs a system for your needs.%u2022 Ease of Use %u2013 Just fill the supply tanks, start the system and begin planting, cultivating or tilling.MICRO-TUBE COMPONENTSO.D. = .250I.D. = .100O.D. = .250I.D. = .110O.D. = .250I.D. = .125O.D. = .250I.D. = .150O.D. = .250I.D. = .170O.D. = .250I.D. = .157O.D. = .156I.D. = .060O.D. = .156I.D. = .080O.D. = .156I.D. = .088O.D. = .156I.D. = .100O.D. = .156I.D. = .110Micro TubeSize RangeDivider841-15-016012-44 Port, 3/8\Manifold841-01-400005-04 Row, 5/32\Manifold841-01-400008-04 Row, %u00bc\Divider841-15-024016-54 Port, %u00bd\Divider841-15-024016-33 Port, %u00bd\Divider841-15-024016-55 Port, %u00bd\Divider841-15-016012-55 Port, 3/8\Divider841-15-016012-33 Port, 3/8\Tube Color Tubing Size 15 PSI 20 PSI 25 PSI 30 PSIBLACK.156 x .035 0.07 0.14 0.20 0.30GREEN.156 x .050 0.17 0.40 0.70 1.10YELLOW.156 x .060 1.00 1.50 2.00 2.50NAVY BLUE.156 x .080 2.00 3.40 4.90 5.40BROWN.156 x .088 3.70 5.40 7.10 8.80BLUE.250 x .100 7.40 8.80 12.80 16.90GREEN.250 x .110 13.50 17.70 22.00 25.40TAN.250 x .125 16.90 22.00 26.40 30.40ORANGE.250 x .150 27.00 32.10 37.20 43.90YELLOW.250 x .170 37.20 47.30 57.50 67.60BLACK.250 x .187 60.80 71.00 84.50 101.40OZ/MIN/ROW
