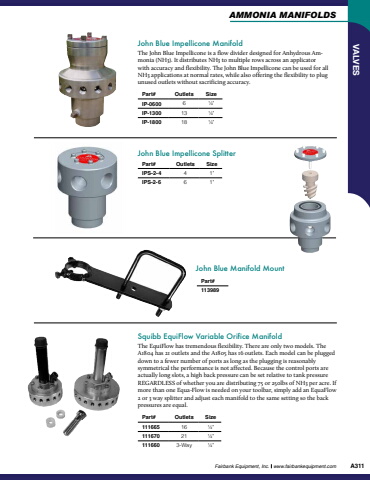

Fairbank Equipment, Inc. www.fairbankequipment.com A311 VALVES Squibb EquiFlow Variable Orifice ManifoldThe EquiFlow has tremendous flexibility. There are only two models. The A1804 has 21 outlets and the A1805 has 16 outlets. Each model can be plugged down to a fewer number of ports as long as the plugging is reasonably symmetrical the performance is not affected. Because the control ports are actually long slots, a high back pressure can be set relative to tank pressure REGARDLESS of whether you are distributing 75 or 250lbs of NH3 per acre. If more than one Equa-Flow is needed on your toolbar, simply add an EquaFlow 2 or 3 way splitter and adjust each manifold to the same setting so the back pressures are equal.AMMONIA MANIFOLDSJohn Blue Impellicone SplitterJohn Blue Impellicone ManifoldThe John Blue Impellicone is a flow divider designed for Anhydrous Ammonia (NH3). It distributes NH3 to multiple rows across an applicator with accuracy and flexibility. The John Blue Impellicone can be used for all NH3 applications at normal rates, while also offering the flexibility to plug unused outlets without sacrificing accuracy.Part# Outlets SizeIP-0600 6 %u00bc\IP-1300 13 %u00bc\IP-1800 18 %u00bc\Part# Outlets Size111665 16 %u00bc\111670 21 %u00bc\111660 3-Way %u00bc\Part# Outlets SizeIPS-2-4 4 1\IPS-2-6 6 1\John Blue Manifold MountPart#113989
