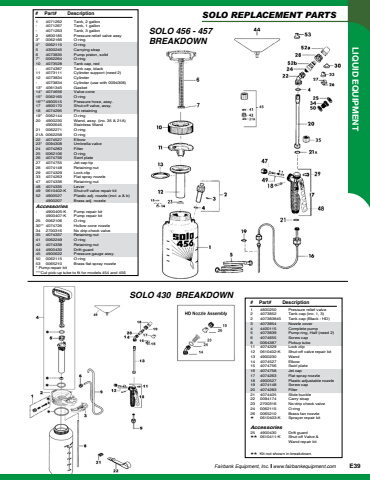

Fairbank Equipment, Inc. www.fairbankequipment.com E39 LIQUID EQUIPMENTSOLO REPLACEMENT PARTS1 4800250 Pressure relief valve2 4073852 Tank cap (inc. 1, 3)2 407383845 Tank cap (Black - HD)3 4073854 Nozzle cover4 4400115 Complete pump5 4073839 Pump ring, Half (need 2)6 4074655 Screw cap8 0064387 Pickup tube11 4074329 Lock clip12 0610402-K Shut-off valve repair kit13 4900230 Wand14 4074527 Elbow15 4074756 Swirl plate16 4074758 Jet cap17 4074263 Flat spray nozzle18 4900527 Plastic adjustable nozzle19 4074148 Screw cap20 4074283 Filter21 4074405 Slide buckle22 0094174 Carry strap23 2700316 No-drip check valve24 0062115 O-ring26 0065210 Brass fan nozzle* 0610403-K Sprayer repair kitAccessories25 4900430 Drift guard** 0610411-K Shut-off Valve & Wand repair kit** Kit not shown in breakdown.# Part# DescriptionSOLO 430 BREAKDOWN1 4071262 Tank, 2 gallon- 4071267 Tank, 1 gallon- 4071263 Tank, 3 gallon2 4800185 Pressure relief valve assy3* 0062166 O-ring4* 0062115 O-ring5 4300245 Carrying strap6 4073835 Pump piston, solid7* 0062264 O-ring10 4073528 Tank cap, red- 4074387 Tank cap, black11 4073111 Cylinder support (need 2)12 4073834 Cylinder- 4073834 Cylinder (use with 0094308)13* 4061345 Gasket14* 4074656 Valve cone15* 0062165 O-ring16***4900515 Pressure hose, assy.17 4800170 Shut-off valve, assy.18 4074295 Pin retaining19* 0062144 O-ring20 4900230 Wand, assy. (inc. 35 & 21A)4900645 Stainless Wand21 0062271 O-ring21A 0062258 O-ring22 4074527 Elbow23* 0094308 Umbrella valve24 4074283 Filter25 0062106 O-ring26 4074756 Swirl plate27 4074755 Jet cap tip28 4074148 Retaining nut29 4074329 Lock clip33 4074263 Flat spray nozzle47 4074336 Retaining nut48 4074335 Lever49 0610402-K Shut-off valve repair kit52 4900527 Plastic adj. nozzle (incl. a & b)4900207 Brass adj. nozzleAccessories- 4900405-K Pump repair kit4900407-K Pump repair kit25 0062106 O-ring30** 4074726 Hollow cone nozzle34 2700316 No drip check valve35 4074337 Retaining nut41 0062249 O-ring42 4074338 Retaining nut44 4900430 Drift guard45 4900622 Pressure gauge assy.50 0062115 O-ring53 0065210 Brass flat spray nozzle* Pump repair kit***Cut pick-up tube to fit for models 454 and 456# Part# DescriptionSOLO 456 - 457 BREAKDOWN
