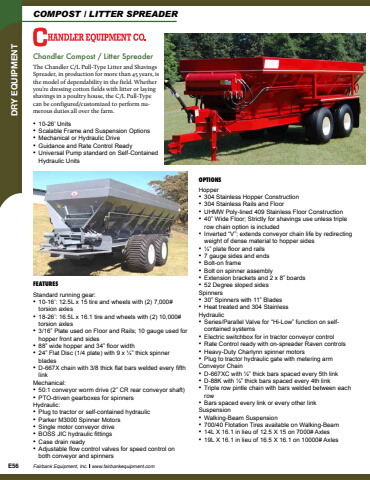

E56 Fairbank Equipment, Inc. www.fairbankequipment.com DRY EQUIPMENTCOMPOST / LITTER SPREADERChandler Compost / Litter SpreaderThe Chandler C/L Pull-Type Litter and Shavings Spreader, in production for more than 45 years, is the model of dependability in the field. Whether you%u2019re dressing cotton fields with litter or laying shavings in a poultry house, the C/L Pull-Type can be configured/customized to perform numerous duties all over the farm.%u2022 10-26%u2019 Units%u2022 Scalable Frame and Suspension Options%u2022 Mechanical or Hydraulic Drive%u2022 Guidance and Rate Control Ready%u2022 Universal Pump standard on Self-Contained Hydraulic UnitsFEATURESStandard running gear:%u2022 10-16%u2019: 12.5L x 15 tire and wheels with (2) 7,000# torsion axles%u2022 18-26%u2019: 16.5L x 16.1 tire and wheels with (2) 10,000# torsion axles%u2022 3/16%u201d Plate used on Floor and Rails; 10 gauge used for hopper front and sides%u2022 88%u201d wide hopper and 34%u201d floor width%u2022 24%u201d Flat Disc (1/4 plate) with 9 x %u00bc%u201d thick spinner blades%u2022 D-667X chain with 3/8 thick flat bars welded every fifth linkMechanical:%u2022 50:1 conveyor worm drive (2%u201d CR rear conveyor shaft)%u2022 PTO-driven gearboxes for spinnersHydraulic:%u2022 Plug to tractor or self-contained hydraulic%u2022 Parker M3000 Spinner Motors%u2022 Single motor conveyor drive%u2022 BOSS JIC hydraulic fittings%u2022 Case drain ready%u2022 Adjustable flow control valves for speed control on both conveyor and spinnersOPTIONSHopper%u2022 304 Stainless Hopper Construction%u2022 304 Stainless Rails and Floor%u2022 UHMW Poly-lined 409 Stainless Floor Construction%u2022 40%u201d Wide Floor; Strictly for shavings use unless triple row chain option is included%u2022 Inverted %u201cV%u201d; extends conveyor chain life by redirecting weight of dense material to hopper sides%u2022 %u00bc%u201d plate floor and rails%u2022 7 gauge sides and ends%u2022 Bolt-on frame%u2022 Bolt on spinner assembly%u2022 Extension brackets and 2 x 8%u201d boards%u2022 52 Degree sloped sidesSpinners%u2022 30%u201d Spinners with 11%u201d Blades%u2022 Heat treated and 304 StainlessHydraulic%u2022 Series/Parallel Valve for %u201cHi-Low%u201d function on selfcontained systems%u2022 Electric switchbox for in tractor conveyor control%u2022 Rate Control ready with on-spreader Raven controls%u2022 Heavy-Duty Charlynn spinner motors%u2022 Plug to tractor hydraulic gate with metering armConveyor Chain%u2022 D-667XC with %u00bd%u201d thick bars spaced every 5th link%u2022 D-88K with %u00bd%u201d thick bars spaced every 4th link%u2022 Triple row pintle chain with bars welded between each row%u2022 Bars spaced every link or every other linkSuspension%u2022 Walking-Beam Suspension%u2022 700/40 Flotation Tires available on Walking-Beam%u2022 14L X 16.1 in lieu of 12.5 X 15 on 7000# Axles%u2022 19L X 16.1 in lieu of 16.5 X 16.1 on 10000# Axles
