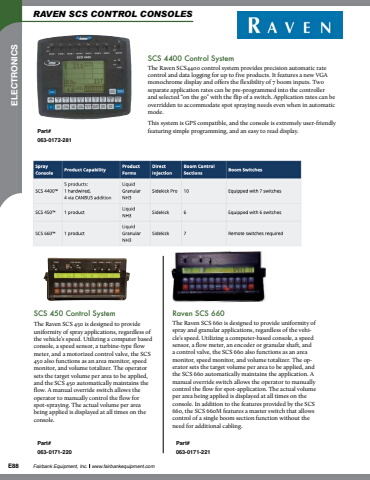

E88 Fairbank Equipment, Inc. www.fairbankequipment.com ELECTRONICSRAVEN SCS CONTROL CONSOLESRaven SCS 660The Raven SCS 660 is designed to provide uniformity of spray and granular applications, regardless of the vehicle%u2019s speed. Utilizing a computer-based console, a speed sensor, a flow meter, an encoder or granular shaft, and a control valve, the SCS 660 also functions as an area monitor, speed monitor, and volume totalizer. The operator sets the target volume per area to be applied, and the SCS 660 automatically maintains the application. A manual override switch allows the operator to manually control the flow for spot-application. The actual volume per area being applied is displayed at all times on the console. In addition to the features provided by the SCS 660, the SCS 660M features a master switch that allows control of a single boom section function without the need for additional cabling.SCS 450 Control SystemThe Raven SCS 450 is designed to provide uniformity of spray applications, regardless of the vehicle%u2019s speed. Utilizing a computer based console, a speed sensor, a turbine-type flow meter, and a motorized control valve, the SCS 450 also functions as an area monitor, speed monitor, and volume totalizer. The operator sets the target volume per area to be applied, and the SCS 450 automatically maintains the flow. A manual override switch allows the operator to manually control the flow for spot-spraying. The actual volume per area being applied is displayed at all times on the console.Part#063-0171-220Part#063-0171-221SCS 4400 Control SystemThe Raven SCS4400 control system provides precision automatic rate control and data logging for up to five products. It features a new VGA monochrome display and offers the flexibility of 7 boom inputs. Two separate application rates can be pre-programmed into the controller and selected %u201con the go%u201d with the flip of a switch. Application rates can be overridden to accommodate spot spraying needs even when in automatic mode.This system is GPS compatible, and the console is extremely user-friendly Part# featuring simple programming, and an easy to read display.063-0172-281
