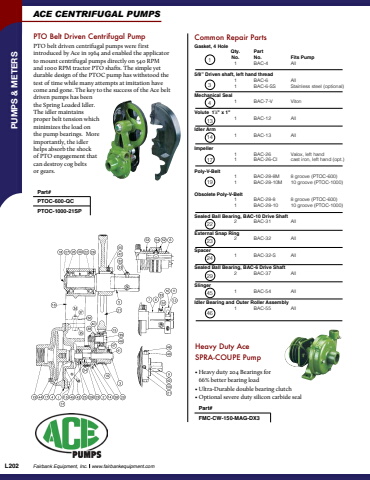

L202 Fairbank Equipment, Inc. www.fairbankequipment.com PUMPS & METERSPTO Belt Driven Centrifugal PumpPTO belt driven centrifugal pumps were first introduced by Ace in 1964 and enabled the applicator to mount centrifugal pumps directly on 540 RPM and 1000 RPM tractor PTO shafts. The simple yet durable design of the PTOC pump has withstood the test of time while many attempts at imitation have come and gone. The key to the success of the Ace belt driven pumps has been the Spring Loaded Idler. The idler maintains proper belt tension which minimizes the load on the pump bearings. More importantly, the idler helps absorb the shock of PTO engagement that can destroy cog belts or gears.Gasket, 4 HoleQty. Part No. No. Fits Pump1 BAC-4 All5/8%u201d Driven shaft, left hand thread1 BAC-6 All1 BAC-6-SS Stainless steel (optional)Mechanical Seal1 BAC-7-V VitonVolute 11%u20444\1 BAC-12 AllIdler Arm1 BAC-13 AllImpeller1 BAC-26 Valox, left hand1 BAC-26-CI cast iron, left hand (opt.)Poly-V-Belt1 BAC-28-8M 8 groove (PTOC-600)1 BAC-28-10M 10 groove (PTOC-1000)Obsolete Poly-V-Belt1 BAC-28-8 8 groove (PTOC-600)1 BAC-28-10 10 groove (PTOC-1000)Sealed Ball Bearing, BAC-10 Drive Shaft2 BAC-31 AllExternal Snap Ring2 BAC-32 AllSpacer1 BAC-32-S AllSealed Ball Bearing, BAC-6 Drive Shaft2 BAC-37 AllSlinger1 BAC-54 AllIdler Bearing and Outer Roller Assembly1 BAC-55 All13171941314222324294546Heavy Duty Ace SPRA-COUPE Pump%u2022 Heavy duty 204 Bearings for 66% better bearing load%u2022 Ultra-Durable double bearing clutch%u2022 Optional severe duty silicon carbide sealCommon Repair PartsACE CENTRIFUGAL PUMPSPart#FMC-CW-150-MAG-DX3Part#PTOC-600-QCPTOC-1000-21SP
