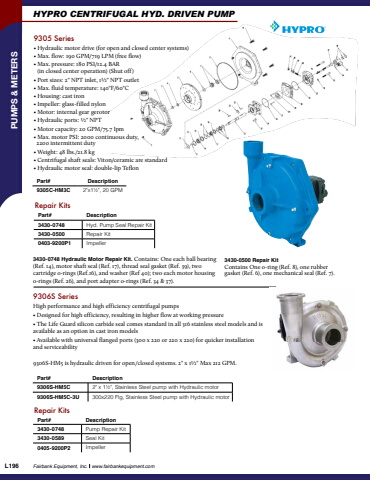

L196 Fairbank Equipment, Inc. www.fairbankequipment.com PUMPS & METERS9306S Series High performance and high efficiency centrifugal pumps%u2022 Designed for high efficiency, resulting in higher flow at working pressure%u2022 The Life Guard silicon carbide seal comes standard in all 316 stainless steel models and is available as an option in cast iron models%u2022 Available with universal flanged ports (300 x 220 or 220 x 220) for quicker installation and serviceability 9306S-HM5 is hydraulic driven for open/closed systems. 2\HYPRO CENTRIFUGAL HYD. DRIVEN PUMPPart# Description9306S-HM5C 2\9306S-HM5C-3U 300x220 Flg, Stainless Steel pump with Hydraulic motorPart# Description3430-0748 Pump Repair Kit3430-0589 Seal Kit0405-9200P2 ImpellerRepair KitsPart# Description9305C-HM3C 2\Part# Description3430-0748 Hyd. Pump Seal Repair Kit3430-0500 Repair Kit0403-9200P1 ImpellerRepair Kits9305 Series%u2022 Hydraulic motor drive (for open and closed center systems)%u2022 Max. flo 190 GPM/719 LPM (free flow)%u2022 Max. pressure: 180 PSI/12.4 BAR(in closed center operation) (Shut off)%u2022 Port sizes: 2\%u2022 Max. fluid temperature: 140%u00b0F/60%u00b0C%u2022 Housing: cast iron%u2022 Impeller: glass-filled nylon%u2022 Motor: internal gear gerotor%u2022 Hydraulic ports: %u00bd\%u2022 Motor capacity: 20 GPM/75.7 Ipm%u2022 Max. motor PSI: 2000 continuous duty, 2200 intermittent duty%u2022 Weight: 48 lbs./21.8 kg%u2022 Centrifugal shaft seals: Viton/ceramic are standard %u2022 Hydraulic motor seal: double-lip Teflon3430-0748 Hydraulic Motor Repair Kit. Contains: One each ball bearing (Ref. 14), motor shaft seal (Ref. 17), thread seal gasket (Ref. 39), two cartridge o-rings (Ref.16), and washer (Ref 40); two each motor housing o-rings (Ref. 26), and port adapter o-rings (Ref. 34 & 37).3430-0500 Repair Kit Contains One o-ring (Ref. 8), one rubber gasket (Ref. 6), one mechanical seal (Ref. 7).
