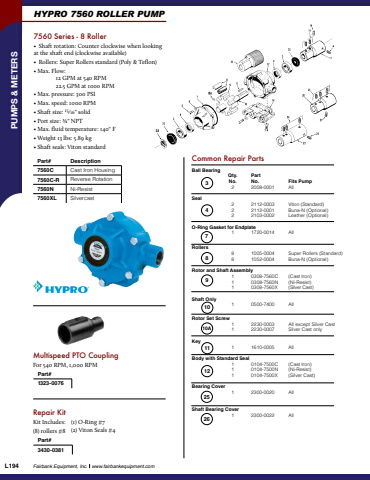

L194 Fairbank Equipment, Inc. www.fairbankequipment.com PUMPS & METERS7560 Series - 8 Roller%u2022 Shaft rotation: Counter clockwise when looking at the shaft end (clockwise available)%u2022 Rollers: Super Rollers standard (Poly & Teflon)%u2022 Max. Flo12 GPM at 540 RPM22.5 GPM at 1000 RPM%u2022 Max. pressure: 300 PSI%u2022 Max. speed: 1000 RPM%u2022 Shaft size: 15%u204416\%u2022 Port size: %u00be\%u2022 Max. fluid temperature: 140%u00b0 F%u2022 Weight 13 lbs: 5.89 kg%u2022 Shaft seals: Viton standardBall BearingQty. Part No. No. Fits Pump2 2008-0001 AllSeal2 2112-0003 Viton (Standard)2 2112-0001 Buna-N (Optional)2 2103-0002 Leather (Optional)O-Ring Gasket for Endplate1 1720-0014 AllRollers8 1005-0004 Super Rollers (Standard)8 1052-0004 Buna-N (Optional)Rotor and Shaft Assembly1 0308-7560C (Cast Iron)1 0308-7560N (Ni-Resist)1 0308-7560X (Silver Cast)Shaft Only1 0500-7400 AllRotor Set Screw1 2230-0003 All except Silver Cast1 2230-0007 Silver Cast onlyKey1 1610-0005 AllBody with Standard Seal 1 0104-7500C (Cast Iron)1 0104-7500N (Ni-Resist)1 0104-7500X (Silver Cast)Bearing Cover1 2300-0020 AllShaft Bearing Cover1 2300-0022 AllCommon Repair Parts347891010A11122526HYPRO 7560 ROLLER PUMPPart# Description7560C Cast Iron Housing7560C-R Reverse Rotation7560N Ni-Resist7560XL SilvercastPart#3430-0381Part#1323-0076Multispeed PTO CouplingFor 540 RPM, 1,000 RPMRepair KitKit Includes: (8) rollers #8(1) O-Ring #7(2) Viton Seals #4
