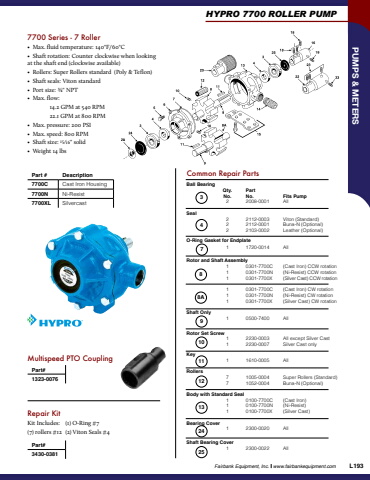

Fairbank Equipment, Inc. www.fairbankequipment.com L193 PUMPS & METERS7700 Series - 7 Roller%u2022 Max. fluid temperature: 140%u00b0F/60%u00b0C%u2022 Shaft rotation: Counter clockwise when looking at the shaft end (clockwise available)%u2022 Rollers: Super Rollers standard (Poly & Teflon)%u2022 Shaft seals: Viton standard%u2022 Port size: %u00be\%u2022 Max. flo14.2 GPM at 540 RPM22.1 GPM at 800 RPM%u2022 Max. pressure: 200 PSI%u2022 Max. speed: 800 RPM%u2022 Shaft size: 15 %u204416\%u2022 Weight 14 lbsBall BearingQty. Part No. No. Fits Pump2 2008-0001 AllSeal2 2112-0003 Viton (Standard)2 2112-0001 Buna-N (Optional)2 2103-0002 Leather (Optional)O-Ring Gasket for Endplate1 1720-0014 AllRotor and Shaft Assembly1 0301-7700C (Cast Iron) CCW rotation1 0301-7700N (Ni-Resist) CCW rotation1 0301-7700X (Silver Cast) CCW rotation1 0301-7700C (Cast Iron) CW rotation1 0301-7700N (Ni-Resist) CW rotation1 0301-7700X (Silver Cast) CW rotationShaft Only1 0500-7400 AllRotor Set Screw1 2230-0003 All except Silver Cast1 2230-0007 Silver Cast onlyKey1 1610-0005 AllRollers7 1005-0004 Super Rollers (Standard)7 1052-0004 Buna-N (Optional)Body with Standard Seal 1 0100-7700C (Cast Iron)1 0100-7700N (Ni-Resist)1 0100-7700X (Silver Cast)Bearing Cover1 2300-0020 AllShaft Bearing Cover1 2300-0022 All3488A101213Common Repair PartsHYPRO 7700 ROLLER PUMPPart # Description7700C Cast Iron Housing7700N Ni-Resist7700XL SilvercastMultispeed PTO CouplingRepair KitKit Includes: (7) rollers #12 Part#3430-0381Part#1323-0076(1) O-Ring #7(2) Viton Seals #411924257
