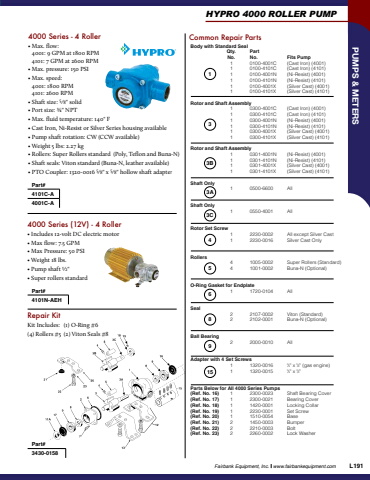

Fairbank Equipment, Inc. www.fairbankequipment.com L191 PUMPS & METERS4000 Series - 4 Roller%u2022 Max. flo4001: 9 GPM at 1800 RPM4101: 7 GPM at 2600 RPM%u2022 Max. pressure: 150 PSI%u2022 Max. speed:4001: 1800 RPM4101: 2600 RPM%u2022 Shaft size: 5 %u20448\%u2022 Port size: %u00be\%u2022 Max. fluid temperature: 140%u00b0 F%u2022 Cast Iron, Ni-Resist or Silver Series housing available%u2022 Pump shaft rotation: CW (CCW available)%u2022 Weight 5 lbs: 2.27 kg%u2022 Rollers: Super Rollers standard (Poly, Teflon and Buna-N)%u2022 Shaft seals: Viton standard (Buna-N, leather available)%u2022 PTO Coupler: 1320-0016 5%u20448\Body with Standard SealQty. Part No. No. Fits Pump1 0100-4001C (Cast Iron) (4001)1 0100-4101C (Cast Iron) (4101)1 0100-4001N (Ni-Resist) (4001)1 0100-4101N (Ni-Resist) (4101)1 0100-4001X (Silver Cast) (4001)1 0100-4101X (Silver Cast) (4101)Rotor and Shaft Assembly1 0300-4001C (Cast Iron) (4001)1 0300-4101C (Cast Iron) (4101)1 0300-4001N (Ni-Resist) (4001)1 0300-4101N (Ni-Resist) (4101)1 0300-4001X (Silver Cast) (4001)1 0300-4101X (Silver Cast) (4101)Rotor and Shaft Assembly1 0301-4001N (Ni-Resist) (4001)1 0301-4101N (Ni-Resist) (4101)1 0301-4001X (Silver Cast) (4001)1 0301-4101X (Silver Cast) (4101)Shaft Only1 0500-6600 AllShaft Only1 0550-4001 AllRotor Set Screw1 2230-0002 All except Silver Cast1 2230-0016 Silver Cast OnlyRollers4 1005-0002 Super Rollers (Standard)4 1001-0002 Buna-N (Optional)O-Ring Gasket for Endplate1 1720-0104 AllSeal2 2107-0002 Viton (Standard)2 2102-0001 Buna-N (Optional)Ball Bearing2 2000-0010 AllAdapter with 4 Set Screws1 1320-0016 5%u20448\%u20448\1 1320-0015 5%u20448\%u20444\Parts Below for All 4000 Series Pumps(Ref. No. 16) 1 2300-0023 Shaft Bearing Cover(Ref. No. 17) 1 2300-0021 Bearing Cover(Ref. No. 18) 1 1420-0001 Locking Collar(Ref. No. 19) 1 2230-0001 Set Screw(Ref. No. 20) 1 1510-0054 Base(Ref. No. 21) 2 1450-0003 Bumper(Ref. No. 22) 2 2210-0003 Bolt(Ref. No. 23) 2 2260-0002 Lock Washer133B3A3C4568915HYPRO 4000 ROLLER PUMPCommon Repair PartsPart#4101C-A4001C-APart#4101N-AEHPart#3430-01584000 Series (12V) - 4 Roller %u2022 Includes 12-volt DC electric motor%u2022 Max flo 7.5 GPM%u2022 Max Pressure: 50 PSI%u2022 Weight 18 lbs.%u2022 Pump shaft %u00bd\%u2022 Super rollers standardRepair KitKit Includes: (4) Rollers #5 (1) O-Ring #6 (2) Viton Seals #8
