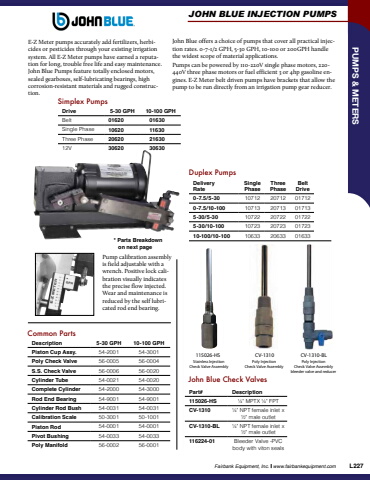

Fairbank Equipment, Inc. www.fairbankequipment.com L227 PUMPS & METERSPump calibration assembly is field adjustable with a wrench. Positive lock calibration visually indicates the precise flow injected. Wear and maintenance is reduced by the self lubricated rod end bearing.E-Z Meter pumps accurately add fertilizers, herbicides or pesticides through your existing irrigation system. All E-Z Meter pumps have earned a reputation for long, trouble free life and easy maintenance. John Blue Pumps feature totally enclosed motors, sealed gearboxes, self-lubricating bearings, high corrosion-resistant materials and rugged construction.Simplex PumpsJohn Blue Check ValvesJOHN BLUE INJECTION PUMPSJohn Blue offers a choice of pumps that cover all practical injection rates. 0-7-1/2 GPH, 5-30 GPH, 10-100 or 200GPH handle the widest scope of material applications.Pumps can be powered by 110-220V single phase motors, 220-440V three phase motors or fuel efficient 3 or 4hp gasoline engines. E-Z Meter belt driven pumps have brackets that allow the pump to be run directly from an irrigation pump gear reducer.Drive 5-30 GPH 10-100 GPHBelt 01620 01630Single Phase 10620 11630Three Phase 20620 2163012V 30620 30630Description 5-30 GPH 10-100 GPHPiston Cup Assy. 54-2001 54-3001Poly Check Valve 56-0005 56-0004S.S. Check Valve 56-0006 56-0020Cylinder Tube 54-0021 54-0020Complete Cylinder 54-2000 54-3000Rod End Bearing 54-9001 54-9001Cylinder Rod Bush 54-0031 54-0031Calibration Scale 50-3001 50-1001Piston Rod 54-0001 54-0001Pivot Bushing 54-0033 54-0033Poly Manifold 56-0002 56-0001Delivery RateSingle PhaseThree PhaseBelt Drive0-7.5/5-30 10712 20712 017120-7.5/10-100 10713 20713 017135-30/5-30 10722 20722 017225-30/10-100 10723 20723 0172310-100/10-100 10633 20633 01633Common PartsDuplex PumpsPart# Description115026-HS %u00bc\CV-1310 %u00bc\%u00bd\CV-1310-BL %u00bc\%u00bd\116224-01 Bleeder Valve -PVC body with viton seals115026-HS CV-1310 CV-1310-BLPoly Injection Check Valve AssemblyPoly Injection Check Valve Assemblybleeder valve and reducerStainless Injection Check Valve Assembly* Parts Breakdown on next page
