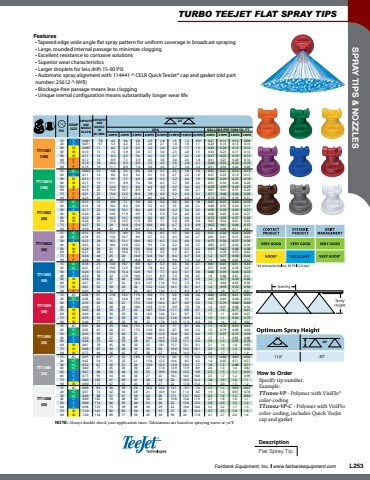

Fairbank Equipment, Inc. www.fairbankequipment.com L253 SPRAY TIPS & NOZZLESTURBO TEEJET FLAT SPRAY TIPSFeatures%u2022 Tapered edge wide angle flat spray pattern for uniform coverage in broadcast spraying%u2022 Large, rounded internal passage to minimize clogging%u2022 Excellent resistance to corrosive solutions%u2022 Superior wear characteristics%u2022 Larger droplets for less drift 15-90 PSI%u2022 Automatic spray alignment with 114441-*-CELR Quick TeeJet%u00ae cap and gasket (old part number: 25612-*-NYR)%u2022 Blockage-free passage means less clogging%u2022 Unique inernal configuration means substantially longer wear lifeHow to OrderSpecify tip number.Example:TT11001-VP - Polymer with VisiFlo%u00ae color-codingTT11002-VP-C - Polymer with VisiFlo color-coding, includes Quick TeeJet cap and gasket NOTE: Always double check your application rates. Tabulations are based on spraying water at 70%u00b0F.DescriptionFlat Spray TipPSIDROPSIZECAPACITYONENOZZLEIN GPMCAPACITY ONENOZZLEIN OZ./MIN.20GPA GALLONS PER 1000 SQ. FT.4 MPH 5 MPH 6 MPH 8 MPH 10 MPH 12 MPH 15 MPH 20 MPH 2 MPH 3 MPH 4 MPH 5 MPHTT11001 (100)15 C 0.061 7.8 4.5 3.6 3.0 2.3 1.8 1.5 1.2 0.91 0.21 0.14 0.10 0.0820 C 0.071 9.1 5.3 4.2 3.5 2.6 2.1 1.8 1.4 1.1 0.24 0.16 0.12 0.1030 M 0.087 11 6.5 5.2 4.3 3.2 2.6 2.2 1.7 1.3 0.30 0.20 0.15 0.1240 M 0.10 13 7.4 5.9 5.0 3.7 3.0 2.5 2.0 1.5 0.34 0.23 0.17 0.1450 M 0.11 14 8.2 6.5 5.4 4.1 3.3 2.7 2.2 1.6 0.37 0.25 0.19 0.1560 F 0.12 15 8.9 7.1 5.9 4.5 3.6 3.0 2.4 1.8 0.41 0.27 0.20 0.1675 F 0.14 18 10.4 8.3 6.9 5.2 4.2 3.5 2.8 2.1 0.48 0.32 0.24 0.1990 F 0.15 19 11.1 8.9 7.4 5.6 4.5 3.7 3.0 2.2 0.51 0.34 0.26 0.20TT110015(100)15 VC 0.092 12 6.8 5.5 4.6 3.4 2.7 2.3 1.8 1.4 0.31 0.21 0.16 0.1320 C 0.11 14 8.2 6.5 5.4 4.1 3.3 2.7 2.2 1.6 0.37 0.25 0.19 0.1530 M 0.13 17 9.7 7.7 6.4 4.8 3.9 3.2 2.6 1.9 0.44 0.29 0.22 0.1840 M 0.15 19 11.1 8.9 7.4 5.6 4.5 3.7 3.0 2.2 0.51 0.34 0.26 0.2050 M 0.17 22 12.6 10.1 8.4 6.3 5.0 4.2 3.4 2.5 0.58 0.39 0.29 0.2360 F 0.18 23 13.4 10.7 8.9 6.7 5.3 4.5 3.6 2.7 0.61 0.41 0.31 0.2475 F 0.21 27 15.6 12.5 10.4 7.8 6.2 5.2 4.2 3.1 0.71 0.48 0.36 0.2990 F 0.23 29 17.1 13.7 11.4 8.5 6.8 5.7 4.6 3.4 0.78 0.52 0.39 0.31TT11002 (50)15 VC 0.12 15 8.9 7.1 5.9 4.5 3.6 3.0 2.4 1.8 0.41 0.27 0.20 0.1620 VC 0.14 18 10.4 8.3 6.9 5.2 4.2 3.5 2.8 2.1 0.48 0.32 0.24 0.1930 C 0.17 22 12.6 10.1 8.4 6.3 5.0 4.2 3.4 2.5 0.58 0.39 0.29 0.2340 M 0.20 26 14.9 11.9 9.9 7.4 5.9 5.0 4.0 3.0 0.68 0.45 0.34 0.2750 M 0.22 28 16.3 13.1 10.9 8.2 6.5 5.4 4.4 3.3 0.75 0.50 0.37 0.3060 M 0.24 31 17.8 14.3 11.9 8.9 7.1 5.9 4.8 3.6 0.82 0.54 0.41 0.3375 F 0.27 35 20 16.0 13.4 10.0 8.0 6.7 5.3 4.0 0.92 0.61 0.46 0.3790 F 0.30 38 22 17.8 14.9 11.1 8.9 7.4 5.9 4.5 1.0 0.68 0.51 0.41TT110025(50)15 VC 0.15 19 11.1 8.9 7.4 5.6 4.5 3.7 3.0 2.2 0.51 0.34 0.26 0.2020 VC 0.18 23 13.4 10.7 8.9 6.7 5.3 4.5 3.6 2.7 0.61 0.41 0.31 0.2430 C 0.22 28 16.3 13.1 10.9 8.2 6.5 5.4 4.4 3.3 0.75 0.50 0.37 0.3040 M 0.25 32 18.6 14.9 12.4 9.3 7.4 6.2 5.0 3.7 0.85 0.57 0.43 0.3450 M 0.28 36 21 16.6 13.9 10.4 8.3 6.9 5.5 4.2 0.95 0.63 0.48 0.3860 M 0.31 40 23 18.4 15.3 11.5 9.2 7.7 6.1 4.6 1.1 0.70 0.53 0.4275 F 0.34 44 25 20 16.8 12.6 10.1 8.4 6.7 5.0 1.2 0.77 0.58 0.4690 F 0.38 49 28 23 18.8 14.1 11.3 9.4 7.5 5.6 1.3 0.86 0.65 0.52TT11003 (50)15 VC 0.18 23 13.4 10.7 8.9 6.7 5.3 4.5 3.6 2.7 0.61 0.41 0.31 0.2420 VC 0.21 27 15.6 12.5 10.4 7.8 6.2 5.2 4.2 3.1 0.71 0.48 0.36 0.2930 C 0.26 33 19.3 15.4 12.9 9.7 7.7 6.4 5.1 3.9 0.88 0.59 0.44 0.3540 C 0.30 38 22 17.8 14.9 11.1 8.9 7.4 5.9 4.5 1.0 0.68 0.51 0.4150 M 0.34 44 25 20 16.8 12.6 10.1 8.4 6.7 5.0 1.2 0.77 0.58 0.4660 M 0.37 47 27 22 18.3 13.7 11.0 9.2 7.3 5.5 1.3 0.84 0.63 0.5075 M 0.41 52 30 24 20 15.2 12.2 10.1 8.1 6.1 1.4 0.93 0.70 0.5690 F 0.45 58 33 27 22 16.7 13.4 11.1 8.9 6.7 1.5 1.0 0.77 0.61TT11004 (50)15 XC 0.24 31 17.8 14.3 11.9 8.9 7.1 5.9 4.8 3.6 0.82 0.54 0.41 0.3320 VC 0.28 36 21 16.6 13.9 10.4 8.3 6.9 5.5 4.2 0.95 0.63 0.48 0.3830 C 0.35 45 26 21 17.3 13.0 10.4 8.7 6.9 5.2 1.2 0.79 0.60 0.4840 C 0.40 51 30 24 19.8 14.9 11.9 9.9 7.9 5.9 1.4 0.91 0.68 0.5450 M 0.45 58 33 27 22 16.7 13.4 11.1 8.9 6.7 1.5 1.0 0.77 0.6160 M 0.49 63 36 29 24 18.2 14.6 12.1 9.7 7.3 1.7 1.1 0.83 0.6775 M 0.55 70 41 33 27 20 16.3 13.6 10.9 8.2 1.9 1.2 0.94 0.7590 M 0.60 77 45 36 30 22 17.8 14.9 11.9 8.9 2.0 1.4 1.0 0.82TT11005 (50)15 XC 0.31 40 23 18.4 15.3 11.5 9.2 7.7 6.1 4.6 1.1 0.70 0.53 0.4220 VC 0.35 45 26 21 17.3 13.0 10.4 8.7 6.9 5.2 1.2 0.79 0.60 0.4830 VC 0.43 55 32 26 21 16.0 12.8 10.6 8.5 6.4 1.5 0.97 0.73 0.5840 C 0.50 64 37 30 25 18.6 14.9 12.4 9.9 7.4 1.7 1.1 0.85 0.6850 C 0.56 72 42 33 28 21 16.6 13.9 11.1 8.3 1.9 1.3 0.95 0.7660 M 0.61 78 45 36 30 23 18.1 15.1 12.1 9.1 2.1 1.4 1.0 0.8375 M 0.68 87 50 40 34 25 20 16.8 13.5 10.1 2.3 1.5 1.2 0.9290 M 0.75 96 56 45 37 28 22 18.6 14.9 11.1 2.6 1.7 1.3 1.0TT11006 (50)15 XC 0.37 47 27 22 18.3 13.7 11.0 9.2 7.3 5.5 1.3 0.84 0.63 0.5020 VC 0.42 54 31 25 21 15.6 12.5 10.4 8.3 6.2 1.4 0.95 0.71 0.5730 VC 0.52 67 39 31 26 19.3 15.4 12.9 10.3 7.7 1.8 1.2 0.88 0.7140 VC 0.60 77 45 36 30 22 17.8 14.9 11.9 8.9 2.0 1.4 1.0 0.8250 C 0.67 86 50 40 33 25 19.9 16.6 13.3 9.9 2.3 1.5 1.1 0.9160 C 0.73 93 54 43 36 27 22 18.1 14.5 10.8 2.5 1.7 1.2 0.9975 C 0.82 105 61 49 41 30 24 20 16.2 12.2 2.8 1.9 1.4 1.190 M 0.90 115 67 53 45 33 27 22 17.8 13.4 3.1 2.0 1.5 1.2TT11008 (50)15 XC 0.49 63 36 29 24 18.2 14.6 12.1 9.7 7.3 1.7 1.1 0.83 0.6720 VC 0.57 73 42 34 28 21 16.9 14.1 11.3 8.5 1.9 1.3 0.97 0.7830 VC 0.69 88 51 41 34 26 20 17.1 13.7 10.2 2.3 1.6 1.2 0.9440 C 0.80 102 59 48 40 30 24 19.8 15.8 11.9 2.7 1.8 1.4 1.150 C 0.89 114 66 53 44 33 26 22 17.6 13.2 3.0 2.0 1.5 1.260 C 0.98 125 73 58 49 36 29 24 19.4 14.6 3.3 2.2 1.7 1.375 M 1.10 141 82 65 54 41 33 27 22 16.3 3.7 2.5 1.9 1.590 M 1.20 154 89 71 59 45 36 30 24 17.8 4.1 2.7 2.0 1.620* *
