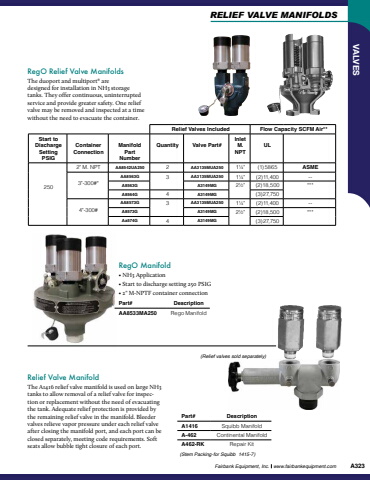

Fairbank Equipment, Inc. www.fairbankequipment.com A323 VALVES RegO Relief Valve ManifoldsThe duoport and multiport%u00ae are designed for installation in NH3 storage tanks. They offer continuous, uninterrupted service and provide greater safety. One relief valve may be removed and inspected at a time without the need to evacuate the container.Relief Valve ManifoldThe A1416 relief valve manifold is used on large NH3 tanks to allow removal of a relief valve for inspection or replacement without the need of evacuating the tank. Adequate relief protection is provided by the remaining relief valve in the manifold. Bleeder valves relieve vapor pressure under each relief valve after closing the manifold port, and each port can be closed separately, meeting code requirements. Soft seats allow bubble tight closure of each port.RELIEF VALVE MANIFOLDSRelief Valves Included Flow Capacity SCFM Air**Start to Discharge Setting PSIGContainer ConnectionManifold Part NumberQuantity Valve Part#Inlet M. NPTUL2502\AA8542UA250 2 AA3135MUA250 1%u00bc\(1)5865 ASME3\AA8563G 3 AA3135MUA250 1%u00bc\(2)11,400 --A8563G A3149MG 2%u00bd\(2)18,500 ***A8564G 4 A3149MG (3)27,7504\AA8573G 3 AA3135MUA250 1%u00bc\(2)11,400 --A8573G A3149MG 2%u00bd\(2)18,500 ***Aa574G 4 A3149MG (3)27,750Part# DescriptionAA8533MA250 Rego ManifoldPart# DescriptionA1416 Squibb ManifoldA-462 Continental ManifoldA462-RK Repair Kit(Stem Packing-for Squibb 1415-7)(Relief valves sold separately)RegO Manifold%u2022 NH3 Application%u2022 Start to discharge setting 250 PSIG%u2022 2\
