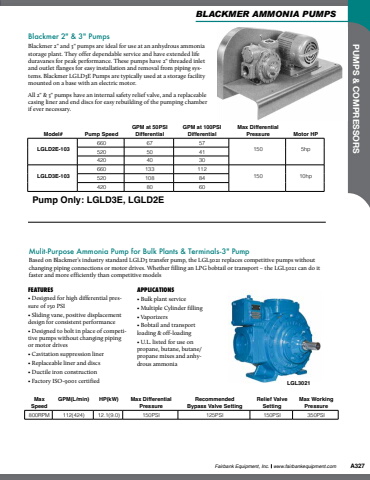

Fairbank Equipment, Inc. www.fairbankequipment.com A327 PUMPS & COMPRESSORSBlackmer 2\Blackmer 2\storage plant. They offer dependable service and have extended life duravanes for peak performance. These pumps have 2\and outlet flanges for easy installation and removal from piping systems. Blackmer LGLD3E Pumps are typically used at a storage facility mounted on a base with an electric motor.All 2\casing liner and end discs for easy rebuilding of the pumping chamber if ever necessary.Mulit-Purpose Ammonia Pump for Bulk Plants & Terminals-3\Based on Blackmer%u2019s industry standard LGLD3 transfer pump, the LGL3021 replaces competitive pumps without changing piping connections or motor drives. Whether filling an LPG bobtail or transport %u2013 the LGL3021 can do it faster and more efficiently than competitive modelsBLACKMER AMMONIA PUMPSAPPLICATIONS%u2022 Bulk plant service%u2022 Multiple Cylinder filling%u2022 Vaporizers%u2022 Bobtail and transport loading & off-loading%u2022 U.L. listed for use on propane, butane, butane/propane mixes and anhydrous ammoniaFEATURES%u2022 Designed for high differential pressure of 150 PSI%u2022 Sliding vane, positive displacement design for consistent performance%u2022 Designed to bolt in place of competitive pumps without changing piping or motor drives%u2022 Cavitation suppression liner%u2022 Replaceable liner and discs%u2022 Ductile iron construction%u2022 Factory ISO-9001 certifiedModel# Pump SpeedGPM at 50PSI DifferentialGPM at 100PSI DifferentialMax Differential Pressure Motor HPLGLD2E-103660 67 57150 5hp 520 50 41420 40 30LGLD3E-103660 133 112150 10hp 520 108 84420 80 60Max SpeedGPM(L/min) HP(kW) Max Differential PressureRecommended Bypass Valve SettingRelief Valve SettingMax Working Pressure800RPM 112(424) 12.1(9.0) 150PSI 125PSI 150PSI 350PSIPump Only: LGLD3E, LGLD2ELGL3021
