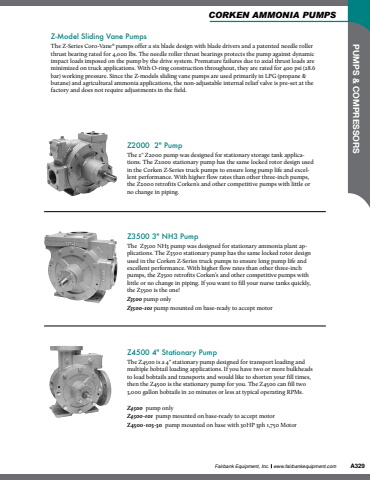

Fairbank Equipment, Inc. www.fairbankequipment.com A329 PUMPS & COMPRESSORSZ-Model Sliding Vane PumpsThe Z-Series Coro-Vane%u00ae pumps offer a six blade design with blade drivers and a patented needle roller thrust bearing rated for 4,000 lbs. The needle roller thrust bearings protects the pump against dynamic impact loads imposed on the pump by the drive system. Premature failures due to axial thrust loads are minimized on truck applications. With O-ring construction throughout, they are rated for 400 psi (28.6 bar) working pressure. Since the Z-models sliding vane pumps are used primarily in LPG (propane & butane) and agricultural ammonia applications, the non-adjustable internal relief valve is pre-set at the factory and does not require adjustments in the field.Z2000 2\The 2\tions. The Z2000 stationary pump has the same locked rotor design used in the Corken Z-Series truck pumps to ensure long pump life and excellent performance. With higher flow rates than other three-inch pumps, the Z2000 retrofits Corken%u2019s and other competitive pumps with little or no change in piping.Z3500 3\The Z3500 NH3 pump was designed for stationary ammonia plant applications. The Z3500 stationary pump has the same locked rotor design used in the Corken Z-Series truck pumps to ensure long pump life and excellent performance. With higher flow rates than other three-inch pumps, the Z3500 retrofits Corken%u2019s and other competitive pumps with little or no change in piping. If you want to fill your nurse tanks quickly, the Z3500 is the one!Z3500 pump onlyZ3500-101 pump mounted on base-ready to accept motorZ4500 4\The Z4500 is a 4\multiple bobtail loading applications. If you have two or more bulkheads to load bobtails and transports and would like to shorten your fill times, then the Z4500 is the stationary pump for you. The Z4500 can fill two 3,000 gallon bobtails in 20 minutes or less at typical operating RPMs.Z4500 pump onlyZ4500-101 pump mounted on base-ready to accept motorZ4500-103-30 pump mounted on base with 30HP 3ph 1,750 MotorCORKEN AMMONIA PUMPS
