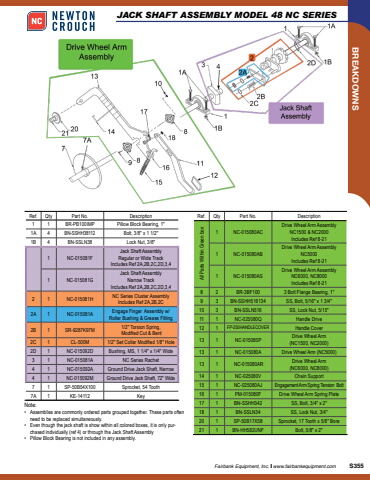

Fairbank Equipment, Inc. www.fairbankequipment.com S355 BREAKDOWNSRef. Qty Part No. Description1 1 BR-PB100IMP Pillow Block Bearing, 1\1A 4 BN-SSHH38112 Bolt, 3/8\1B 4 BN-SSLN38 Lock Nut, 3/8\1 NC-015081FJack Shaft AssemblyRegular or Wide TrackIncludes Ref 2A,2B,2C,2D,3,41 NC-015081GJack Shaft AssemblyNarrow TrackIncludes Ref 2A,2B,2C,2D,3,42 1 NC-015081H NC Series Cluster AssemblyIncludes Ref 2A,2B,2C2A 1 NC-015081A Engage Finger Assembly w/ Roller Bushing & Grease Fitting2B 1 SR-9287K97M 1/2\ Modified Cut & Bent2C 1 CL-500M 1/2\2D 1 NC-015092D Bushing, MS, 1 1/4\3 1 NC-015081A NC Series Rachet4 1 NC-015092A Ground Drive Jack Shaft, Narrow4 1 NC-015092M Ground Drive Jack Shaft, 72\7 1 SP-50B54X100 Sprocket, 54 Tooth7A 1 KE-14112 KeyRef. Qty Part No. Description All Parts Within Green box1 NC-015080ACDrive Wheel Arm AssemblyNC1500 & NC2000Includes Ref 8-211 NC-015080ABDrive Wheel Arm Assembly NC5000Includes Ref 8-211 NC-015080ASDrive Wheel Arm AssemblyNC6000, NC8000 Includes Ref 8-218 2 BR-3BF100 3 Bolt Flange Bearing, 1\9 3 BN-SSHH516134 SS, Bolt, 5/16\10 3 BN-SSLN516 SS, Lock Nut, 5/15\11 1 NC-025080Q Handle Drive12 1 FP-250HANDLECOVER Handle Cover 13 1 NC-015080P Drive Wheel Arm (NC1500, NC2000)13 1 NC-015080A Drive Wheel Arm (NC5000)13 1 NC-015080AR Drive Wheel Arm (NC6000, NC8000)14 1 NC-025080V Chain Support15 1 NC-025080AJ Engagement Arm Spring Tension Bolt16 1 PM-015080F Drive Wheel Arm Spring Plate17 1 BN-SSHH342 SS, Bolt, 3/4\18 1 BN-SSLN34 SS, Lock Nut, 3/4\20 1 SP-50B17X58 Sprocket, 17 Tooth x 5/8\21 1 BN-HH582UNF Bolt, 5/8\Note:%u2022 Assemblies are commonly ordered parts grouped together. These parts often need to be replaced simultaneously.%u2022 Even though the jack shaft is show within all colored boxes, it is only purchased individually (ref 4) or through the Jack Shaft Assembly%u2022 Pillow Block Bearing is not included in any assembly.JACK SHAFT ASSEMBLY MODEL 48 NC SERIES
