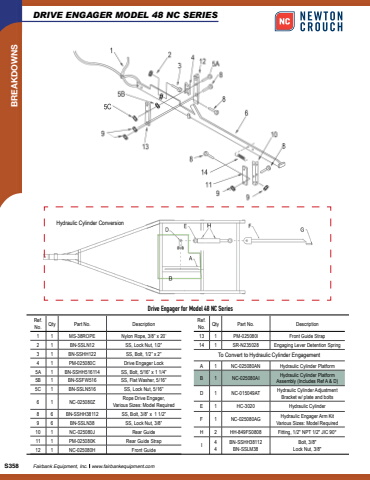

S358 Fairbank Equipment, Inc. www.fairbankequipment.com BREAKDOWNS Ref. No. Qty Part No. Description 1 1 MS-38ROPE Nylon Rope, 3/8%u201d x 20%u20192 1 BN-SSLN12 SS, Lock Nut, 1/2%u201d3 1 BN-SSHH122 SS, Bolt, 1/2%u201d x 2%u201d4 1 PM-025080C Drive Engager Lock5A 1 BN-SSHH516114 SS, Bolt, 5/16%u201d x 1 1/4%u201d5B 1 BN-SSFW516 SS, Flat Washer, 5/16%u201d5C 1 BN-SSLN516 SS, Lock Nut, 5/16%u201d6 1 NC-025080Z Rope Drive Engager, Various Sizes: Model Required 8 6 BN-SSHH38112 SS, Bolt, 3/8%u201d x 1 1/2%u201d9 6 BN-SSLN38 SS, Lock Nut, 3/8%u201d10 1 NC-025080J Rear Guide11 1 PM-025080K Rear Guide Strap12 1 NC-025080H Front GuideRef. No. Qty Part No. Description 13 1 PM-025080I Front Guide Strap 14 1 SR-N235028 Engaging Lever Detention SpringTo Convert to Hydraulic Cylinder EngagementA 1 NC-025080AN Hydraulic Cylinder PlatformB 1 NC-025080AI Hydraulic Cylinder Platform Assembly (Includes Ref A & D)D 1 NC-015049AT Hydraulic Cylinder Adjustment Bracket w/ plate and boltsE 1 HC-3020 Hydraulic CylinderF 1 NC-025080AG Hydraulic Engager Arm KitVarious Sizes: Model RequiredH 2 HH-849FS0808 Fitting, 1/2\I 44BN-SSHH38112BN-SSLM38Bolt, 3/8\Lock Nut, 3/8\Drive Engager for Model 48 NC SeriesHydraulic Cylinder ConversionDRIVE ENGAGER MODEL 48 NC SERIES
