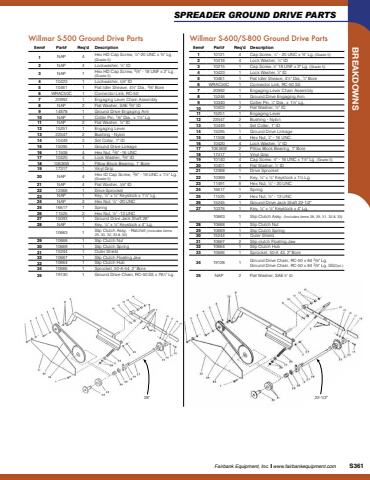

Fairbank Equipment, Inc. www.fairbankequipment.com S361 BREAKDOWNSWillmar S-600/S-800 Ground Drive PartsSPREADER GROUND DRIVE PARTSItem# Part# Req'd Description1 NAP 4 Hex HD Cap Screw, %u00bc\(Grade 5)2 NAP 4 Lockwasher, %u00bc\3 NAP 1 Hex HD Cap Screw, 5/8\(Grade 5)4 10423 1 Lockwasher, 5/8\5 10461 1 Flat Idler Sheave, 4%u00bd\6 WRAC50C 1 Connector Link, RC-507 20992 1 Engaging Lever Chain Assembly8 NAP 2 Flat Washer, SAE 5/8\9 14878 1 Ground Drive Engaging Arm10 NAP 1 Cotter Pin, 1/8\11 NAP 2 Flat Washer, %u00bd\12 15251 1 Engaging Lever13 22547 2 Bushing - Nylon14 10449 3 Set Collar, 1\15 15095 1 Ground Drive Linkage16 11508 4 Hex Nut, 3/8\17 10420 4 Lock Washer, 3/8\18 10636W 3 Pillow Block Bearing, 1\19 17317 1 Vinyl Grip20 NAP 4 Hex ID Cap Screw, 3/8\(Grade 5)21 NAP 4 Flat Washer, 3/8\22 12368 1 Drive Sprocket23 NAP 1 Key, %u00bc\24 NAP 3 Hex Nut, %u00bc\25 16617 1 Spring26 11525 2 Hex Nut, %u00bd\27 15093 1 Ground Drive Jack Shaft 28\28 NAP 1 Key, %u00bc\10663 1 Slip Clutch Assy. - Ratchet (includes items 29, 30, 32, 33 & 34)29 10668 1 Slip Clutch Nut30 10669 1 Slip Clutch Spring31 15244 1 Outer Shield32 10667 1 Slip Clutch Floating Jaw33 10664 1 Slip Clutch Hub34 10666 1 Sprocket, 50-A-54, 2\35 19130 1 Ground Drive Chain, RC-50 SS x 767%u20448\Item# Part# Req'd Description1 10121 4 Cap Screw, %u00bc\2 10418 4 Lock Washer, %u00bc\3 10215 1 Cap Screw, 5%u20448\4 10423 1 Lock Washer, 5%u20448\5 10461 1 Flat Idler Sheave, 4%u00bd\%u20448\6 WRAC50C 1 Connector Link, RC-50 SS7 20992 1 Engaging Lever Chain Assembly8 15246 1 Ground Drive Engaging Arm9 10340 1 Cotter Pin, 1%u20448\10 10403 2 Flat Washer, %u00bd\11 15251 1 Engaging Lever12 22547 2 Bushing - Nylon13 10449 1 Set Collar, 1\14 15095 1 Ground Drive Linkage15 11508 4 Hex Nut, 3%u20448\16 10420 4 Lock Washer, 3%u20448\17 10636W 2 Pillow Block Bearing, 1\18 17317 1 Vinyl Grip19 10140 4 Cap Screw, 3%u20448\20 10401 4 Flat Washer, 3%u20448\21 12368 1 Drive Sprocket22 10369 1 Key, %u00bc\23 11491 8 Hex Nut, %u00bc\24 16617 1 Spring25 11525 2 Hex Nut, %u00bd\26 15245 1 Ground Drive Jack Shaft 22-1/2\27 10376 1 Key, %u00bc\10663 1 Slip Clutch Assy. (Includes items 28, 29, 31, 32 & 33)28 10668 1 Slip Clutch Nut29 10669 1 Slip Clutch Spring30 15244 1 Outer Shield31 10667 2 Slip clutch Floating Jaw32 10664 1 Slip Clutch Hub33 10666 1 Sprocket, 50-A 43, 2\34 19128 1 Ground Drive Chain, RC-50 x 84 3/8\Ground Drive Chain, RC-50 x 84 3/8\35 NAP 2 Flat Washer, SAE 5%u20448\Willmar S-500 Ground Drive Parts28\22-1/2\
