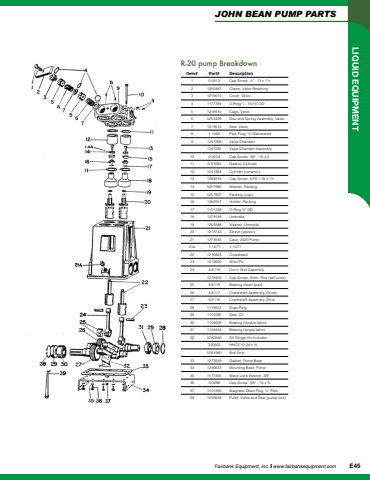

Fairbank Equipment, Inc. www.fairbankequipment.com E45 LIQUID EQUIPMENTJOHN BEAN PUMP PARTSR-20 pump BreakdownItem# Part# Description1 0-0513 Cap Screw, %u00bd\2 1255887 Clamp, Valve Retaining3 1219614 Cover, Valve4 1177394 O-Ring 1 - 13/16\5 1219610 Cage, Valve6 5253499 Disc and Spring Assembly, Valve7 1219615 Seat, Valve8 1-1465 Pipe Plug, %u00bc\9 1247208 Valve Chamber1247235 Valve Chamber Assembly10 0-0224 Cap Screw, 3/8\11 A 91684 Gasket, Cylinder12 1241364 Cylinder (ceramic)13 1284516 Cap Screw, 5/16\14 5257986 Washer, Packing15 5257807 Packing (cup)16 1282557 Holder, Packing17 1101339 O-Ring %u00be\18 1279148 Umbrella19 1269388 Washer, Umbrella20 1218743 Sleeve (plastic)21 1273545 Case, 2020 Pump21a 1-1471 1-147122 1216823 Crosshead23 1219650 Wrist Pin24 6-8118 Conn. Rod Assembly1278439 Cap Screw, Conn. Rod (self Lock)25 6-8119 Bearing Insert (pair)26 6-8117 Crankshaft Assembly, Driven27 6-8116 Crankshaft Assembly, Drive28 1118553 Snap Ring29 1101095 Seal, Oil30 1104508 Bearing (double-fafnir)31 1104444 Bearing (single-fafnir)32 5283846 Oil Slinger Kit Includes:320502 HHCS 10-24 x %u00be5261980 Bolt Strip33 1273559 Gasket, Pump Base34 1280633 Mounting Base, Pump35 1177455 Wave Lock Washer, 3/8\36 0-0286 Cap Screw, 3/8\37 1101305 Magnetic Drain Plug, %u00bc\39 1250638 Puller, Valve and Seat (pump tool)
