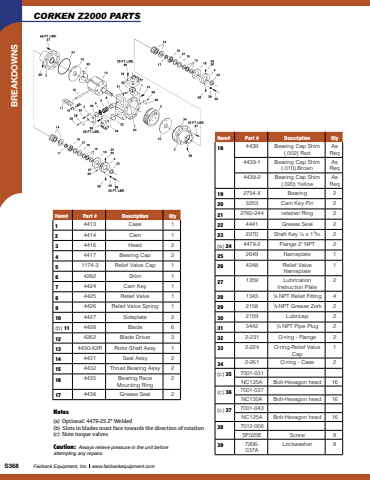

S368 Fairbank Equipment, Inc. www.fairbankequipment.com BREAKDOWNS CORKEN Z2000 PARTSItem# Part # Description Qty1 4413 Case 12 4414 Cam 13 4416 Head 24 4417 Bearing Cap 25 1174-3 Relief Valve Cap 16 4282 Shim 17 4424 Cam Key 18 4425 Relief Valve 19 4426 Relief Valve Spring 110 4427 Sideplate 2(b) 11 4428 Blade 612 4262 Blade Driver 313 4430-X2R Rotor-Shaft Assy 114 4431 Seal Assy 215 4432 Thrust Bearing Assy 216 4435 Bearing Race Mounting Ring217 4438 Grease Seal 2Item# Part # Description Qty18 4439 Bearing Cap Shim (.002) RedAs Req4439-1 Bearing Cap Shim (.010) BrownAs Req4439-2 Bearing Cap Shim (.020) YellowAs Req19 2754-X Bearing 220 3253 Cam Key Pin 221 2760-244 retainer Ring 222 4441 Grease Seal 223 2270 Shaft Key %u00bc x 19/16 2(a) 24 4479-2 Flange 2\225 2649 Nameplate 126 4248 Relief Valve Nameplate127 1359 Lubrication Instruction Plate228 1343 1/8 NPT Relief Fitting 429 2158 1/8 NPT Grease Zerk 230 2159 Lubricap 231 3442 1/4 NPT Pipe Plug 232 2-231 O-ring - Flange 233 2-224 O-ring-Relief Valve Cap134 2-261 O-ring - Case 2(c) 35 7001-031NC125A Bolt-Hexagon head 16(c) 36 7001-037NC150A Bolt-Hexagon head 16(c) 37 7001-043NC125A Bolt-Hexagon head 1638 7012-006SF025E Screw 839 7206-037ALockwasher 8 Caution: Always relieve pressure in the unit before attempting any repairs.Notes(a) Optional: 4479-2S 2\(b) Slots in blades must face towards the direction of rotation(c) Note torque valves
