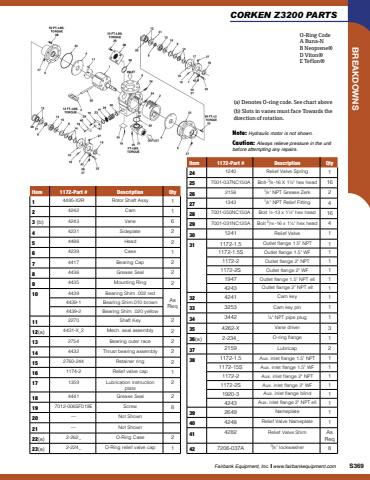

Fairbank Equipment, Inc. www.fairbankequipment.com S369 BREAKDOWNSCORKEN Z3200 PARTS(a) Denotes O-ring code. See chart above(b) Slots in vanes must face Towards the direction of rotation.Note: Hydraulic motor is not shown.Caution: Always relieve pressure in the unit before attempting any repairs.O-Ring CodeA Buna-NB Neoprene%u00aeD Viton%u00aeE Teflon%u00aeItem 1172-Part # Description Qty24 1240 Relief Valve Spring 125 7001-037NC150A Bolt-3/8 -16 X 1%u00bd\1626 2158 1/8 \227 1343 1/8 \428 7001-050NC150A Bolt %u00bd-13 x 1%u00bd\1629 7001-031NC125A Bolt 5/16 -16 x 1%u00bc\430 1241 Relief Valve 131 1172-1.5 Outlet flange 1.5\11172-1.5S Outlet flange 1.5\11172-2 Outlet flange 2\11172-2S Outlet flange 2\11947 Outlet flange 1.5\14243 Outlet flange 2\132 4241 Cam key 133 3253 Cam key pin 134 3442 %u00bc\135 4262-X Vane driver 336(a) 2-234_ O-ring flange 137 2159 Lubricap 238 1172-1.5 Aux. inlet flange 1.5\11172-15S Aux. inlet flange 1.5\11172-2 Aux. inlet flange 2\11172-2S Aux. inlet flange 2\11920-3 Aux. inlet flange blind 14243 Aux. inlet flange 2\139 2649 Nameplate 140 4248 Relief Valve Nameplate 141 4282 Relief Valve Shim As Req42 7206-037A 3/8 \8Item 1172-Part # Description Qty1 4495-X2R Rotor Shaft Assy 12 4242 Cam 13 (b) 4243 Vane 64 4231 Sideplate 25 4488 Head 26 4239 Case 17 4417 Bearing Cap 28 4438 Grease Seal 29 4435 Mounting Ring 210 4439 Bearing Shim .002 redAs Req4439-1 Bearing Shim.010 brown4439-2 Bearing Shim .020 yellow11 2270 Shaft Key 212(a) 4431-X_2 Mech. seal assembly 213 2754 Bearing outer race 214 4432 Thrust bearing assembly 215 2760-244 Retainer ring 216 1174-2 Relief valve cap 117 1359 Lubrication instruction plate218 4441 Grease Seal 219 7012-006SF019E Screw 820 --- Not Shown21 --- Not Shown22(a) 2-262_ O-Ring Case 223(a) 2-224_ O-Ring relief valve cap 1
