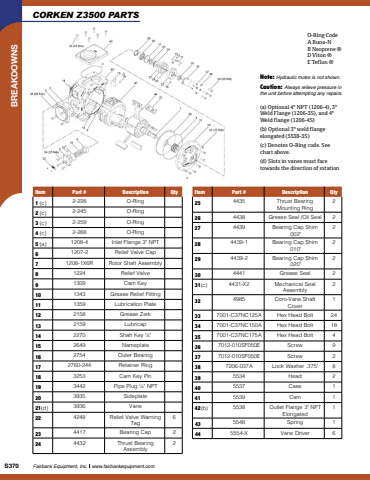

S370 Fairbank Equipment, Inc. www.fairbankequipment.com BREAKDOWNS CORKEN Z3500 PARTS(a) Optional 4\Weld Flange (1206-3S), and 4\Weld flange (1206-4S)(b) Optional 3\elongated (5538-3S)(c) Denotes O-Ring code. See chart above.(d) Slots in vanes must face towards the direction of rotationNote: Hydraulic motor is not shown.Caution: Always relieve pressure in the unit before attempting any repairs.O-Ring CodeA Buna-NB Neoprene %u00aeD Viton %u00aeE Teflon %u00aeItem Part # Description Qty25 4435 Thrust Bearing Mounting Ring226 4438 Grease Seal /Oil Seal 227 4439 Bearing Cap Shim .002\228 4439-1 Bearing Cap Shim .010\229 4439-2 Bearing Cap Shim .020\230 4441 Grease Seal 231(c) 4431-X2 Mechanical Seal Assembly232 4985 Coro-Vane Shaft Cover133 7001-C37NC125A Hex Head Bolt 2434 7001-C37NC150A Hex Head Bolt 1835 7001-C37NC175A Hex Head Bolt 436 7012-010SF050E Screw 937 7012-010SF050E Screw 238 7206-037A Lock Washer .375\839 5534 Head 240 5537 Case 141 5539 Cam 142(b) 5538 Outlet Flange 3\Elongated143 5548 Spring 144 5554-X Vane Driver 6Item Part # Description Qty1 (c) 2-228 O-Ring2 (c) 2-245 O-Ring3 (c) 2-259 O-Ring4 (c) 2-268 O-Ring5 (a) 1208-4 Inlet Flange 3\6 1207-2 Relief Valve Cap7 1208-1X6R Rotor Shaft Assembly8 1224 Relief Valve9 1309 Cam Key10 1343 Grease Relief Fitting11 1359 Lubrication Plate12 2158 Grease Zerk13 2159 Lubricap14 2270 Shaft Key %u00bc\15 2649 Nameplate16 2754 Outer Bearing17 2760-244 Retainer Ring18 3253 Cam Key Pin19 3442 Pipe Plug %u00bc\20 3935 Sideplate21(d) 3936 Vane22 4248 Relief Valve Warning Tag623 4417 Bearing Cap 224 4432 Thrust Bearing Assembly2
