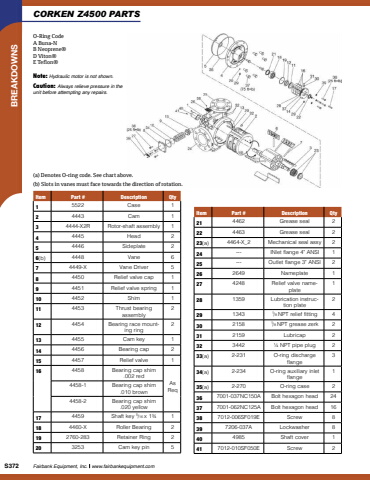

S372 Fairbank Equipment, Inc. www.fairbankequipment.com BREAKDOWNS Item Part # Description Qty21 4462 Grease seal 222 4463 Grease seal 223(a) 4464-X_2 Mechanical seal assy 224 --- INlet flange 4\125 --- Outlet flange 3\226 2649 Nameplate 127 4248 Relief valve nameplate128 1359 Lubrication instruction plate229 1343 1/8 NPT relief fitting 430 2158 1/8 NPT grease zerk 231 2159 Lubricap 232 3442 %u00bc NPT pipe plug 233(a) 2-231 O-ring discharge flange334(a) 2-234 O-ring auxiliary inlet flange135(a) 2-270 O-ring case 236 7001-037NC150A Bolt hexagon head 2437 7001-062NC125A Bolt hexagon head 1638 7012-006SF019E Screw 839 7206-037A Lockwasher 840 4985 Shaft cover 141 7012-010SF050E Screw 2Item Part # Description Qty1 5522 Case 12 4443 Cam 13 4444-X2R Rotor-shaft assembly 14 4445 Head 25 4446 Sideplate 26(b) 4448 Vane 67 4449-X Vane Driver 58 4450 Relief valve cap 19 4451 Relief valve spring 110 4452 Shim 111 4453 Thrust bearing assembly212 4454 Bearing race mounting ring213 4455 Cam key 114 4456 Bearing cap 215 4457 Relief valve 116 4458 Bearing cap shim .002 redAs Req4458-1 Bearing cap shim .010 brown4458-2 Bearing cap shim .020 yellow17 4459 Shaft key 5/16 x 1%u00be 118 4460-X Roller Bearing 219 2760-283 Retainer Ring 220 3253 Cam key pin 5(a) Denotes O-ring code. See chart above.(b) Slots in vanes must face towards the direction of rotation. Note: Hydraulic motor is not shown.Caution: Always relieve pressure in the unit before attempting any repairs.O-Ring CodeA Buna-NB Neoprene%u00aeD Viton%u00aeE Teflon%u00aeCORKEN Z4500 PARTS
