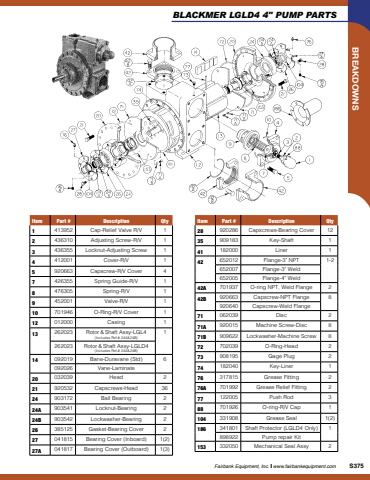

Fairbank Equipment, Inc. www.fairbankequipment.com S375 BREAKDOWNSBLACKMER LGLD4 4\Item Part # Description Qty28 920286 Capscrews-Bearing Cover 1235 909183 Key-Shaft 141 182000 Liner 142 652012 Flange-3\1-2652007 Flange-3\652005 Flange-4\42A 701937 O-ring NPT, Weld Flange 242B 920663 Capscrew-NPT Flange 8920640 Capscrew-Weld Flange71 062039 Disc 271A 920015 Machine Screw-Disc 871B 909622 Lockwasher-Machine Screw 872 702039 O-Ring-Head 273 908195 Gage Plug 274 182040 Key-Liner 176 317815 Grease Fitting 276A 701992 Grease Relief Fitting 277 122005 Push Rod 388 701926 O-ring-R/V Cap 1104 331908 Grease Seal 1(2)186 341801 Shaft Protector (LGLD4 Only) 1898922 Pump repair Kit153 332050 Mechanical Seal Assy 2Item Part # Description Qty1 413952 Cap-Relief Valve R/V 12 436310 Adjusting Screw-R/V 13 436355 Locknut-Adjusting Screw 14 412001 Cover-R/V 15 920663 Capscrew-R/V Cover 47 426355 Spring Guide-R/V 18 476305 Spring-R/V 19 452001 Valve-R/V 110 701946 O-Ring-R/V Cover 112 012000 Casing 113 262023 Rotor & Shaft Assy-LGL4 (Includes Ref.# 24A&24B)1262023 Rotor & Shaft Assy-LGLD4 (Includes Ref.# 24A&24B)14 092019 Bane-Duravane (Std) 6092026 Vane-Laminate20 032039 Head 221 920532 Capscrews-Head 3624 903172 Ball Bearing 224A 903541 Locknut-Bearing 224B 903542 Lockwasher-Bearing 226 385125 Gasket-Bearing Cover 227 041815 Bearing Cover (Inboard) 1(2)27A 041817 Bearing Cover (Outboard) 1(3)
