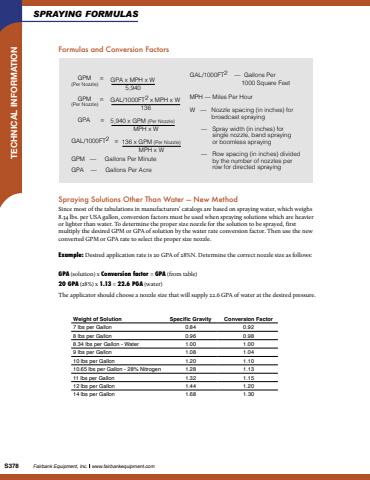

S378 Fairbank Equipment, Inc. www.fairbankequipment.com TECHNICAL INFORMATIONGPA x MPH x W5,940GAL/1000FT2 x MPH x W1365,940 x GPM (Per Nozzle)MPH x W136 x GPM (Per Nozzle)MPH x WGPM =(Per Nozzle)GPM =(Per Nozzle)GPA =GAL/1000FT2 =GPM %u2014 Gallons Per MinuteGPA %u2014 Gallons Per AcreFormulas and Conversion FactorsGAL/1000FT2 %u2014 Gallons Per1000 Square FeetMPH %u2014 Miles Per HourW %u2014 Nozzle spacing (in inches) forbroadcast spraying%u2014 Spray width (in inches) forsingle nozzle, band sprayingor boomless spraying%u2014 Row spacing (in inches) dividedby the number of nozzles perrow for directed spraying Spraying Solutions Other Than Water %u2014 New MethodSince most of the tabulations in manufacturers%u2019 catalogs are based on spraying water, which weighs 8.34 lbs. per USA gallon, conversion factors must be used when spraying solutions which are heavier or lighter than water. To determine the proper size nozzle for the solution to be sprayed, first multiply the desired GPM or GPA of solution by the water rate conversion factor. Then use the new converted GPM or GPA rate to select the proper size nozzle.Example: Desired application rate is 20 GPA of 28%N. Determine the correct nozzle size as follows:GPA (solution) x Conversion factor = GPA (from table)20 GPA (28%) x 1.13 = 22.6 PGA (water)The applicator should choose a nozzle size that will supply 22.6 GPA of water at the desired pressure.SPRAYING FORMULASWeight of Solution Specific Gravity Conversion Factor7 lbs per Gallon 0.84 0.928 lbs per Gallon 0.96 0.988.34 lbs per Gallon - Water 1.00 1.009 lbs per Gallon 1.08 1.0410 lbs per Gallon 1.20 1.1010.65 lbs per Gallon - 28% Nitrogen 1.28 1.1311 lbs per Gallon 1.32 1.1512 lbs per Gallon 1.44 1.2014 lbs per Gallon 1.68 1.30
