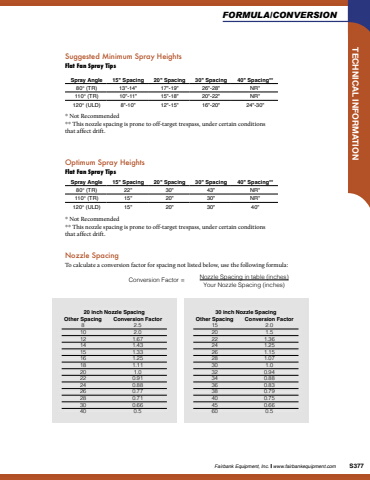

Fairbank Equipment, Inc. www.fairbankequipment.com S377 TECHNICAL INFORMATIONSuggested Minimum Spray HeightsFlat Fan Spray TipsOptimum Spray HeightsFlat Fan Spray TipsNozzle SpacingTo calculate a conversion factor for spacing not listed below, use the following formula:Conversion Factor = Nozzle Spacing in table (inches) Your Nozzle Spacing (inches)20 inch Nozzle SpacingOther Spacing Conversion Factor8 2.510 2.012 1.6714 1.4315 1.3316 1.2518 1.1120 1.022 0.9124 0.8826 0.7728 0.7130 0.6640 0.530 inch Nozzle SpacingOther Spacing Conversion Factor15 2.020 1.522 1.3624 1.2526 1.1528 1.0730 1.032 0.9434 0.8836 0.8338 0.7940 0.7545 0.6660 0.5FORMULA/CONVERSIONSpray Angle 15\20\30\40\80%u00b0 (TR) 13\17\26\NR*110%u00b0 (TR) 10\15\20\NR*120%u00b0 (ULD) 8\12\16\24\Spray Angle 15\20\30\40\80%u00b0 (TR) 22\30\43\NR*110%u00b0 (TR) 15\20\30\NR*120%u00b0 (ULD) 15\20\30\40\* Not Recommended** This nozzle spacing is prone to off-target trespass, under certain conditions that affect drift.* Not Recommended** This nozzle spacing is prone to off-target trespass, under certain conditions that affect drift.
